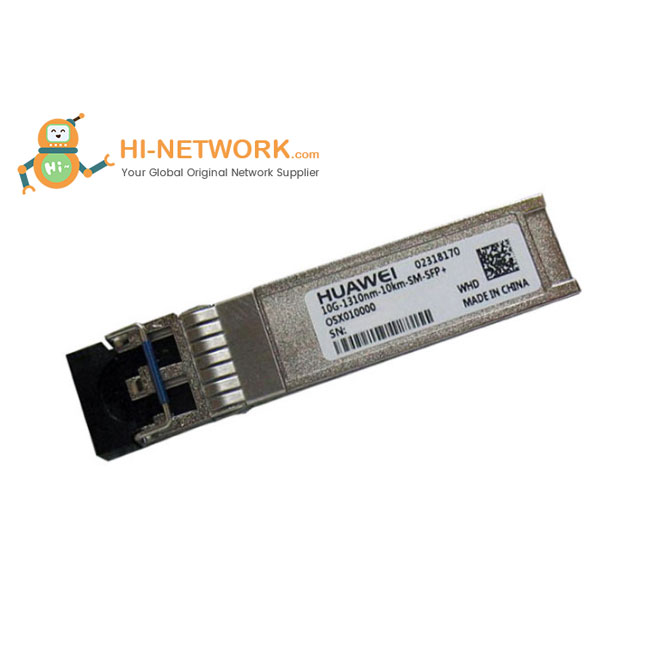

Detail: | Huawei 10GBASE-LR SFP+ 1310nm 10km DOM Duplex LC SMF Optical Transceiver Module |
Model: | OSX010000 (02318170) |
Condition: | Genuine New |
Related: | Huawei 10G SFP+ OSX010000 Original New (02318170) 10GBASE-LR SFP+ 1310nm 10km DOM SMF Duplex LC Optical Transceiver Module OEM OSXD22N00 (02310CRM) Huawei Compatible 10GBASE-LRM SFP+ 1310nm 220m DOM Duplex LC MMF/SMF Optical Transceiver Module Huawei Switch S5735-S32ST4X (98010931) Fiber Channel Switch 24 Ports 1GB switch Huawei S5735-L8T4X-A1 (98011282) 10g Switch 8 port |
Warranty: |
![]() ![]() ![]() |
Shipping: |
Air Shipping to
United States
, Most Customers Receive during 5-7 Days
?
If you finish the payment today,
your order will arrive within the estimated delivery time. |
Ships to:
0.2
|
2-7 Days
US$
|
Payment: |
More
|
Huawei OSX010000 is a 10G Optical Transceiver. It’s a Single-mode Module.
Model | OSX010000 |
Part Number | 02313URK 02318170 |
Transceiver form factor | SFP+ |
Transmission speed | 10 Gbit/s |
Center wavelength (nm) | 1310 |
Standard compliance | 10Gbase-LR |
Connector type | LC |
Applicable cable and maximum transmission distance | Single-mode fiber: 10 km |
Transmit power (dBm) | -8.2 to +0.5 |
Maximum receiver sensitivity (dBm) | -12.6 |
Overload power (dBm) | 0.5 |
Extinction ratio (dB) | 3.5 |
Operating temperature | 0°C to 70°C (32°F to 158°F) |
Net Dimension (D x W x H mm) | 110 x 70 x 3 |
OSX010000 can be installed in the switch's SFP slot.
Model | OSX010000 |
Part Number | 02313URK 02318170 |
Transceiver form factor | SFP+ |
Transmission speed | 10 Gbit/s |
Center wavelength (nm) | 1310 |
Standard compliance | 10Gbase-LR |
Connector type | LC |
Applicable cable and maximum transmission distance | Single-mode fiber: 10 km |
Transmit power (dBm) | -8.2 to +0.5 |
Maximum receiver sensitivity (dBm) | -12.6 |
Overload power (dBm) | 0.5 |
Extinction ratio (dB) | 3.5 |
Operating temperature | 0°C to 70°C (32°F to 158°F) |
Net Dimension (D x W x H mm) | 110 x 70 x 3 |
